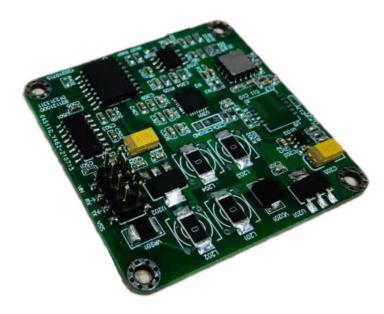

WTS Series PCBA serial output inclination module

WOOSENS WTS series PCBA serial output inclinometer module has RS232 and RS485 two kind of output interface. Customers can choose the appropriate output interface according to the actual situation of your own system. the module use standard MODBUS-RTU protocol，It is convenient for customers who use bus communication and is compatible with other standard protocol modules.

Product details

Measuring range	±15°/±30°/±90°/0-360°
Output Interface	RS232/RS485
Power Supply	9~35V
Operating Temperature	-40~80°C
Operating Current	20~30mA
Frequency Response	5Hz
Measuring axis	X-Y(360°measuring range uniaxis only)
Relative accuracy	±15°measuring range 0.02°
	±30°measuring range 0.04°
	±90°measuring range(<±15°) 0.04°
	±90°measuring range(<±60°) 0.08°
	0-360°measuring range 0.10°

Measuring range	±15°/±30°/±90°/0-360°
Output Interface	RS232/RS485
Power Supply	9~35V
Operating Temperature	-40~80°C
Operating Current	20~30mA
Frequency Response	5Hz

Measuring axis	X-Y(360°measuring range uniaxis only)
Relative accuracy	±15°measuring range 0.02°
	±30°measuring range 0.04°
	±90°measuring range(<±15°) 0.04°
	±90°measuring range(<±60°) 0.08°
	0-360°measuring range 0.10°

Collapse

Download

NAME	TYPE	LANGUAGE	SIZE
20240802043817603	Datasheet	English

Product characteristics

. High accuracy and high stability.

. 9~35V power supply.
. PCBA package.
. Operating at -40°C~85°C.

. RoHS .

. RS485 output and RS232 options.

Product application

Tilt measurement
Horizontal adjustment
Zero-alignment
Automotive safety
Detection of hydroelectric dams, bridge and and building
Surveying and mapping instrument
