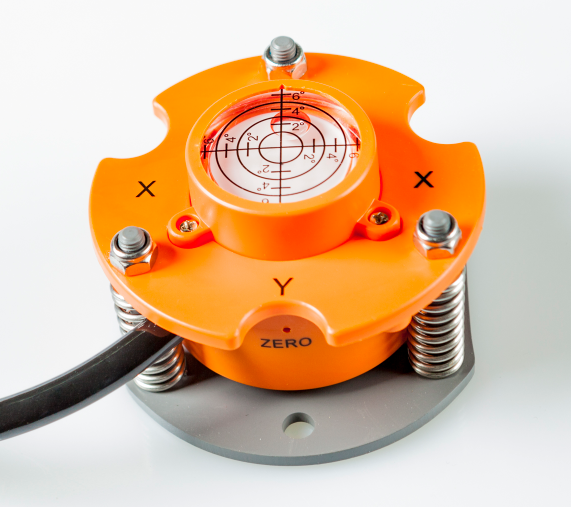

WSA series 0-5V voltage output inclinometer（S）
WOOSENS WSA series voltage output inclinomete module with spring and horizontal air bubble,Designed in the unique spring profile, WSA series allow users to detect whether it works properly via press of the spring. The horizontal air bubble integrated in the up-cover is very convenient to installation and adjustment. It adopts 0~5V standard interface, which can be directly connected to various industrial control hosts. It has excellent load capacity and anti-interference ability. The sensor adopts indicates light to show the working stats, convenient for customers.
Product details
| Power Supply | 9~35V |
| Measuring axis | X-Y |
| Voltage Output | 0~5V |
| Operating Temperature | -40~85°C |
| Operating Current | <30mA |
| Range | ±15°/±30°/±90° optional |
| Frequency Response | 10Hz |
| Output voltage range | 0.5~4.5V |
Download
| NAME | TYPE | LANGUAGE | SIZE |
| WSA series 0-5V voltage output inclinometer（S） | Datasheet | English |
|---|
Product characteristics
. Range±15°/±30°/±90°optional.
. Horizontal air bubble easy to adjustment
. High immunity of static electricity and lightning.
. Overvoltage and surge protection.
. 0~5V high accuracy analog voltage output.
. Light indicates the working stats
. 0~5V high accuracy analog voltage output.
. Light indicates the working stats
Product application
- Inclination measurement
- Construction machinery
- Horizontal adjustment, zero-alignment
- Equipment and Instrument Status Monitoring
